2.3. Engine ComponentsΒΆ

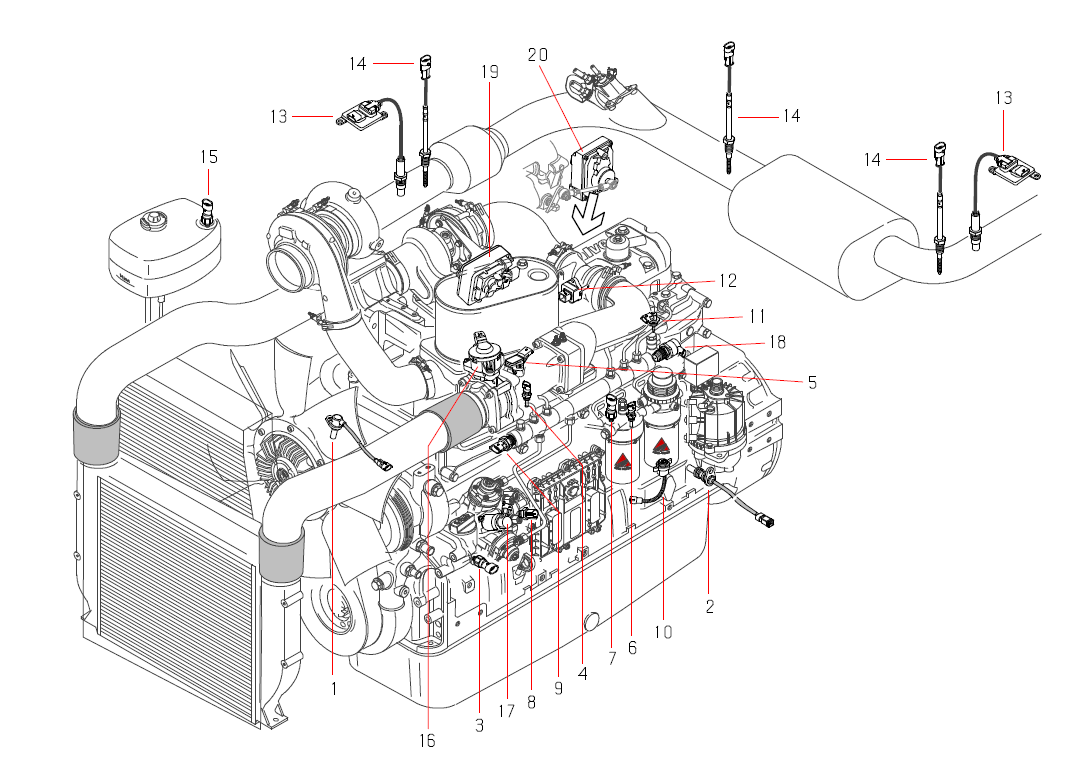

All the Stage5 engine sensors and actuators are shown in figure Engine components.
Engine components
Engine sensors
- 1 Camshaft speed
- 2 Crankshaft speed
- 3 Oil pressure
- 4 Coolant temperature
- 5 Boost pressure and temperature
- 7 Fuel filter pressure
- 8 Fuel supply pump inlet pressure
- 9 Rail pressure
- 10 Water in fuel
- 11 Intake manifold temperature
- 12 Airmass
- 15 Coolant pressure
- 16 Oil level sensor
Engine actuators
- 16 Electrical throttle valve
- 17 Common Rail high Pressure Pump (MPROP)
- 18 Pressure Control Valve (PCV)
- 19 Electrical Waste Gate
- 20 EGR actuator ( Exhaust Gas Recirculation)
