2.3.1. Camshaft speed

Description

The cam speed sensor measures the engine speed from the camshaft. The sensor is an inductive sensor which reads the trigger wheel and is mounted on the camshaft.

ECU connection

The pin numbers at the ECU:

EDC17CV41+      2.68 Trigger input
EDC17CV41+      2.67 Ground

The pin numbers at the sensor:

Pin 1           Trigger input
Pin 2           Ground

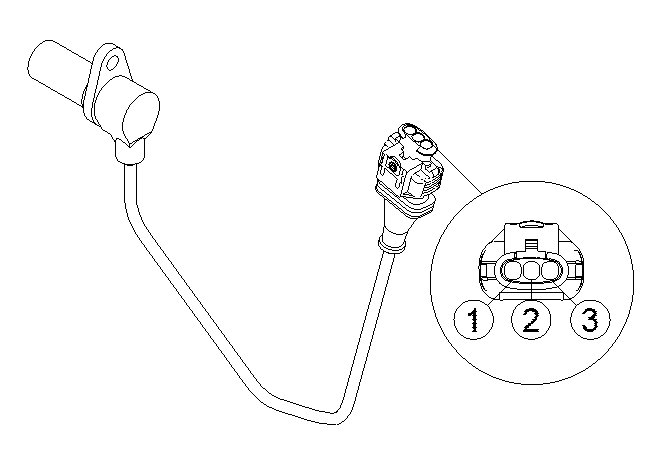

The camshaft speed sensor is shown in figure ECU connection EDC17CV41+, Camshaft speed sensor.

../../_images/speed_sensor_camshaft_837070189.png

ECU connection EDC17CV41+, Camshaft speed sensor

Characteristics

Nominal coil resistance at 20 °C: 774 - 946 Ohms
