6.8. CAN Message TracerΒΆ

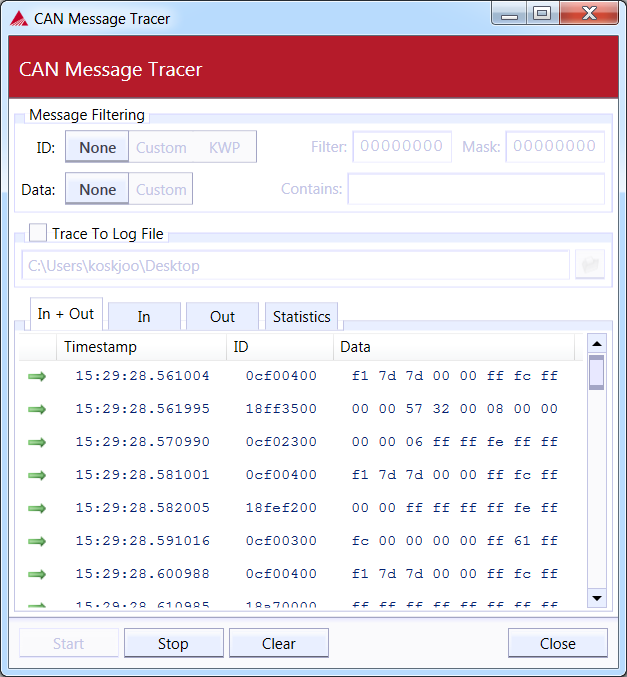

The CAN message tracer is an advanced tool for viewing the CAN bus traffic and for saving the CAN traces to a file for later use. The CAN traces are saved in Vector format. See figure CAN message tracer.

../../_images/tracer.png

CAN message tracer

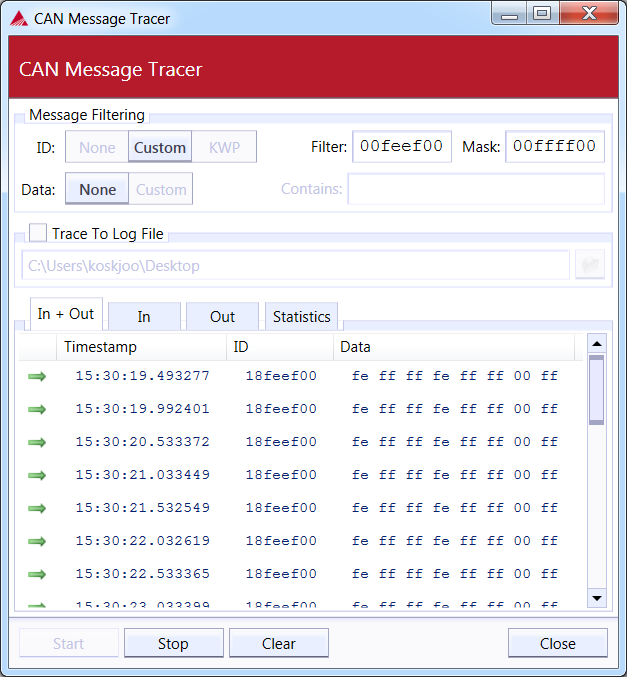

If you are not interested in all the CAN messages in the bus, it is possible to set a filter. For example in figure CAN message tracer with filter a filter and a mask are set so that only the SAE J1939 message with the PGN 65263 (0xFEEF) will pass the filter.

../../_images/tracer_filter.png

CAN message tracer with filter
