6.5.10. Engine Load Profile¶

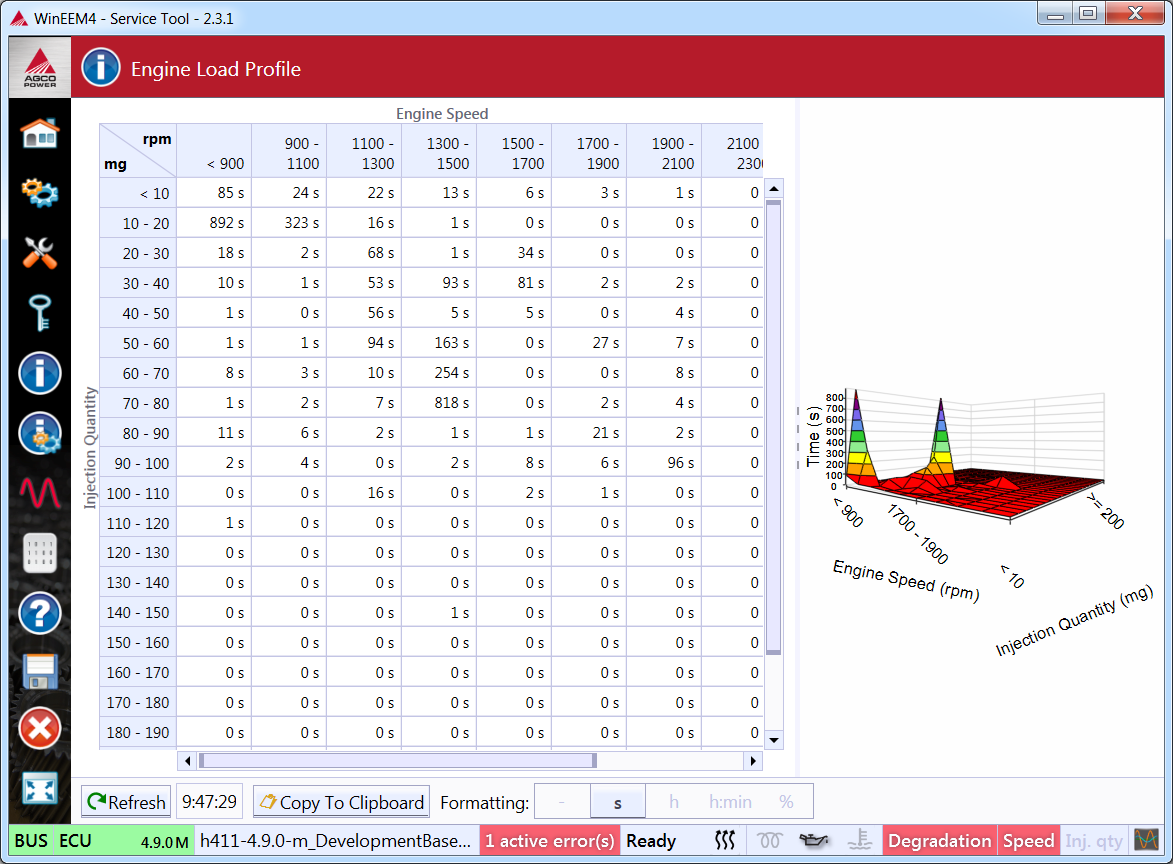

The Engine load profile shows statistic information of how the engine has been loaded during its lifetime. The X-axis is the engine rpm, and Y-axis is the fuel injection quantity. Each cell in the table shows the time for how long the engine has been at that operating point. The time unit can be selected from seconds, hours, hours and minutes, and the percentage of the total running hours.

Note that the load profile is not available on all engine specifications.
