4.3.5. Fuel temperature sensor

Description

The fuel temperature sensor measures the engine fuel temperature. The fuel temperature is located in the main fuel filter.

The AGCO Power part number: 8366 67732

ECU connection

The pin numbers at the ECU:

EDC17CV54       A11 Analog input
EDC17CV54       A14 Ground

EDC17CV41       2.12 Analog input
EDC17CV41       2.40 Ground

EDC17C63        12 Analog input
EDC17C63        11 Ground
../../_images/FuelT_sensor.jpg

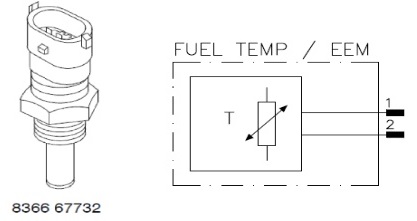

ECU connection EDC17CV54, Fuel temperature sensor

Characteristics

Nominal resistance:

At 20ºC = 2.5 k ohm
At 100ºC = 0.186 k ohm
../../_images/Cengt_char1.jpg

Characteristics, Fuel temperature sensor

Engine sensors overview, see Engine sensors overview
