3.7.3. Engine ECU power supply

Description

The engine ECU power supply and the ground connection.

ECU connection

The pin numbers at the ECU:

EDC17CV41+      1.73 Battery +
EDC17CV41+      1.26 Battery +
EDC17CV41+      1.25 Battery +
EDC17CV41+      1.01 Battery +
EDC17CV41+      1.49 Battery +
EDC17CV41+      1.03 Battery -
EDC17CV41+      1.28 Battery -
EDC17CV41+      1.75 Battery -
EDC17CV41+      1.05 Battery -
EDC17CV41+      1.52 Battery -
EDC17CV41+      1.29 Battery -
EDC17CV41+      1.76 Battery -
EDC17CV41+      1.69 Ignition

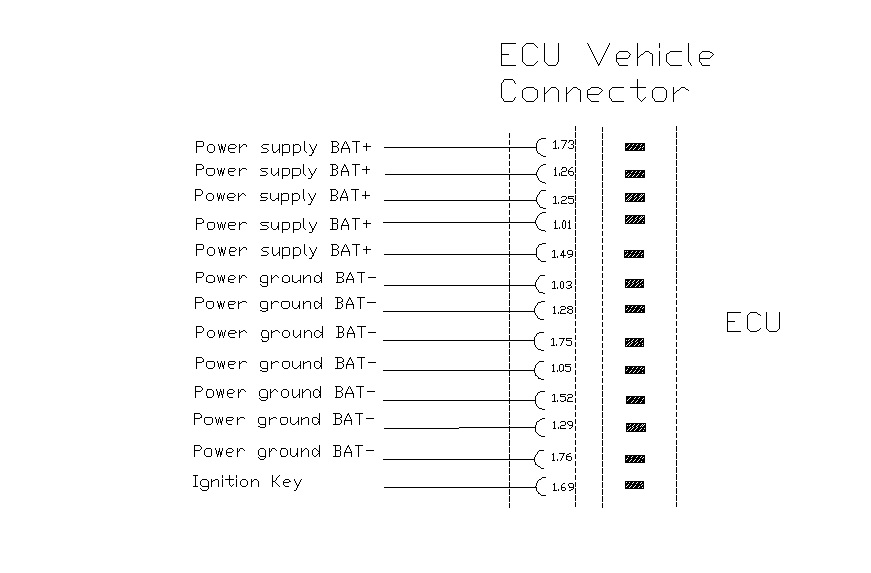

The engine ECU power supply and the ground connection are shown in figure ECU EDC17CV41+ power supply.

ECU EDC17CV41+ power supply
