3.7.4. EEM4f CAN bus overview

Description

The EEM4F Electronic Engine Management system contains three different CAN buses.

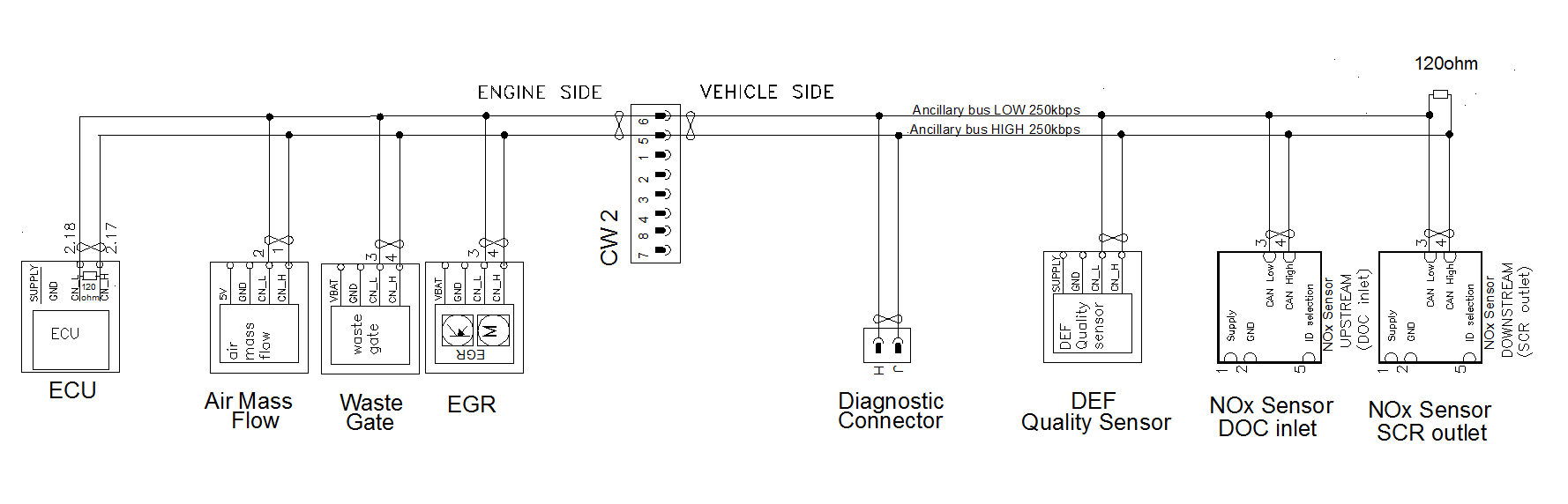

CAN 2 / CAN C Ancillary bus 250kbps

All the CAN actuators are present in the ancillary bus shown in figure Ancillary bus

../../_images/CAN2_Ancillary_250.png

Ancillary bus

The diagnostic connector is located in the ancillary CAN bus, and the connector is in accordance with the SAE 1939 standard.

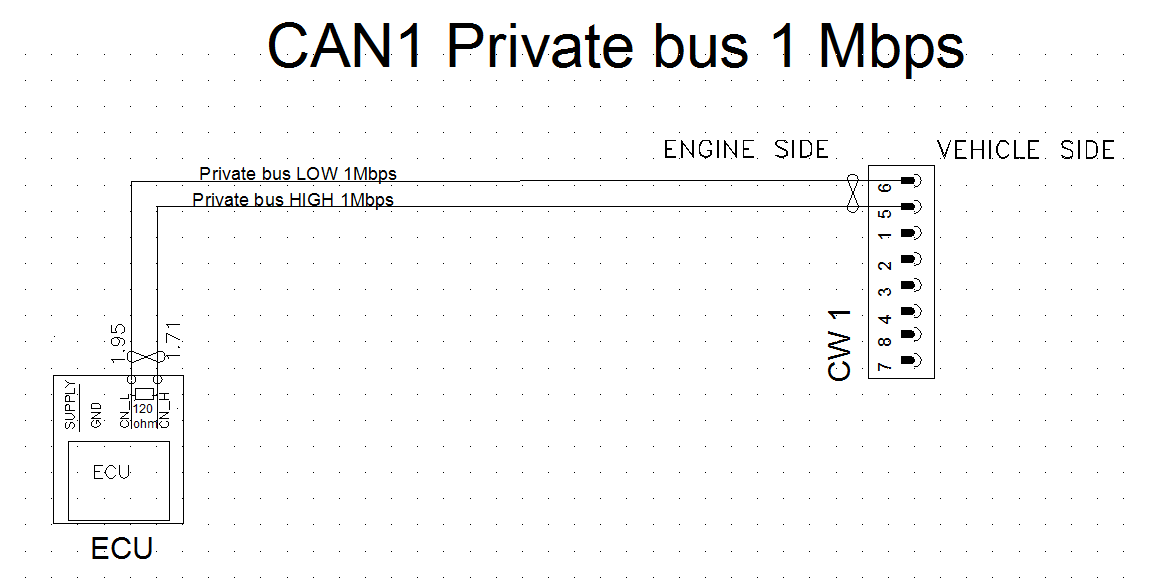

CAN 1 / CAN B Private bus 1Mbps

The private bus is only for ACGO Power purposes. The bus shown in figure Private bus
../../_images/CAN1_private_1M.png

Private bus

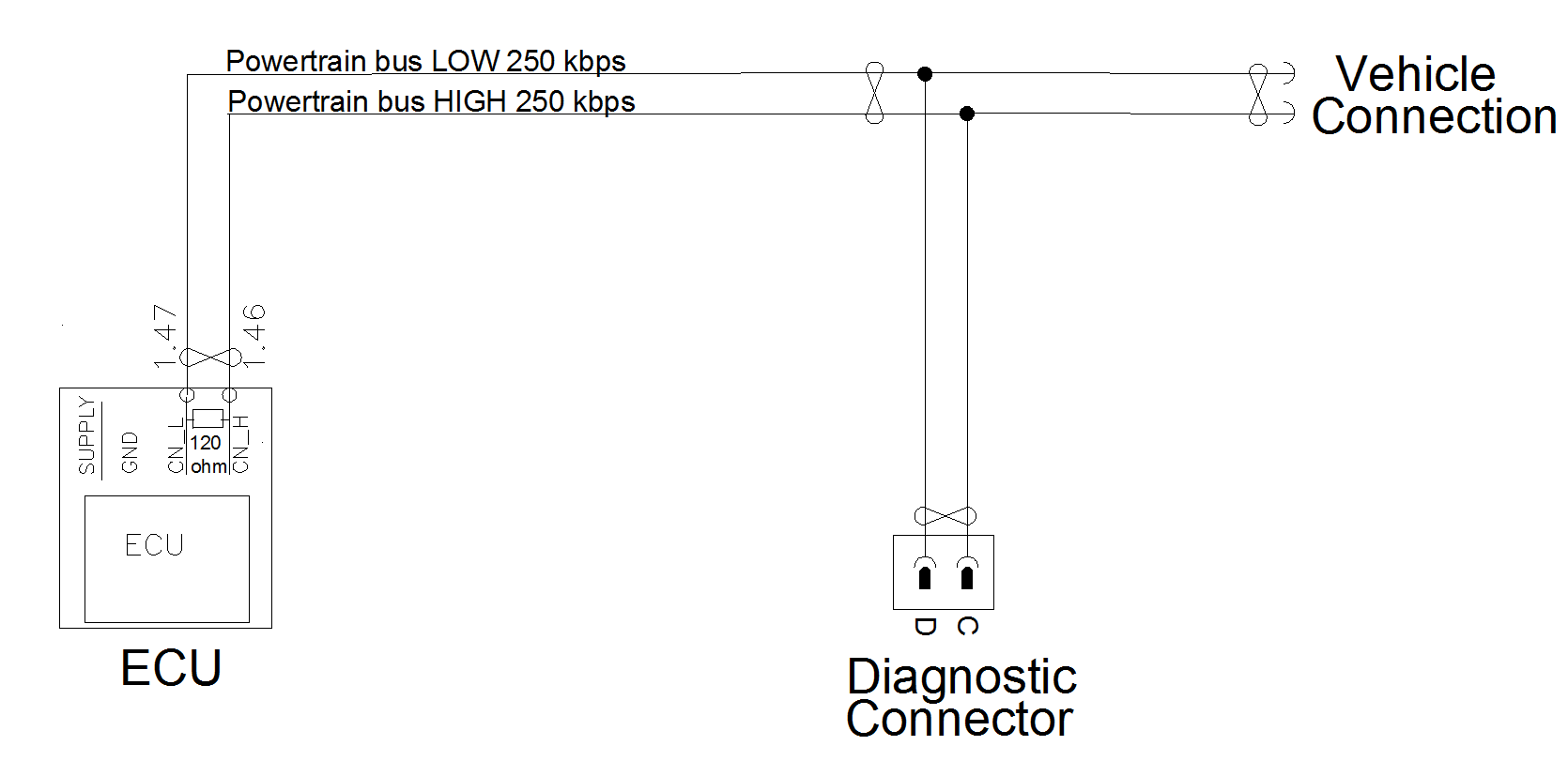

CAN 0 / CAN A Powertrain bus 250kbps

The powertrain bus is for connecting the EEM4f to the vehicle’s electrical system. The bus shown in figure Powertrain bus
../../_images/CAN0_powertrain_250.png

Powertrain bus
