4.3.3. Coolant temperature sensor

Description

The Coolant temperature sensor measures the engine coolant water temperature.

The AGCO Power part number: 8366 67732

ECU connection

The pin numbers at the ECU:

EDC17CV54       A28 Analog input
EDC17CV54       A29 Ground

EDC17CV41       2.39 Analog input
EDC17CV41       2.59 Groound

EDC17C63        33 Analog Input
EDC17C63        34 Ground

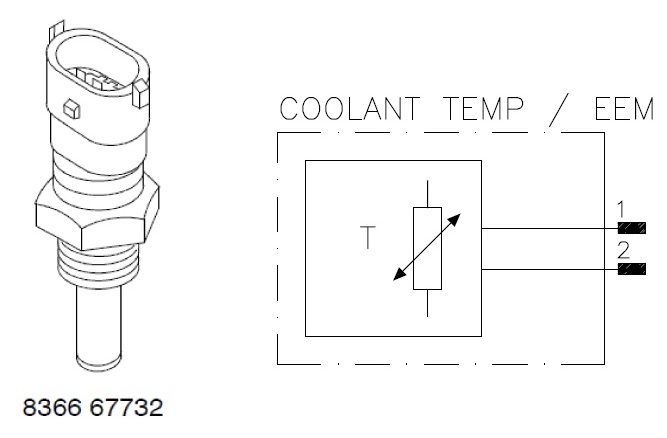

../../_images/cengt_sensor.jpg

ECU connection, Coolant temperature sensor

Characteristics

Nominal resistance:

At 20ºC = 2.5 kohm
At 100ºC = 0.186 kohm

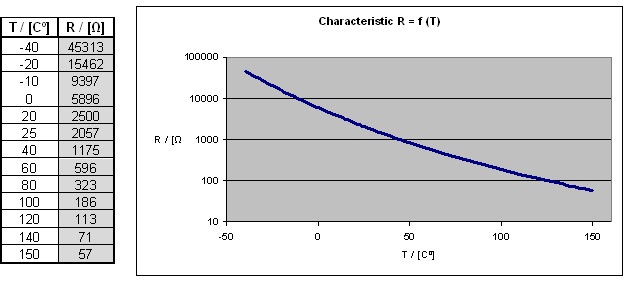

../../_images/Cengt_char1.jpg

Characteristics, Coolant temperature sensor

Engine sensors overview, see Engine sensors overview
