4.3.7. Camshaft inductive speed sensor

Description

The camshaft speed sensor measures the engine speed from camshaft. The sensor is an inductive sensor which reads the trigger wheel mounted on the camshaft

The AGCO Power part number: 8366 67732

ECU connection

The pin numbers at the ECU:

EDC17CV54       A37 Trigger input
EDC17CV54       A52 Ground

EDC17CV41       2.68 Trigger input
EDC17CV41       2.67 Ground

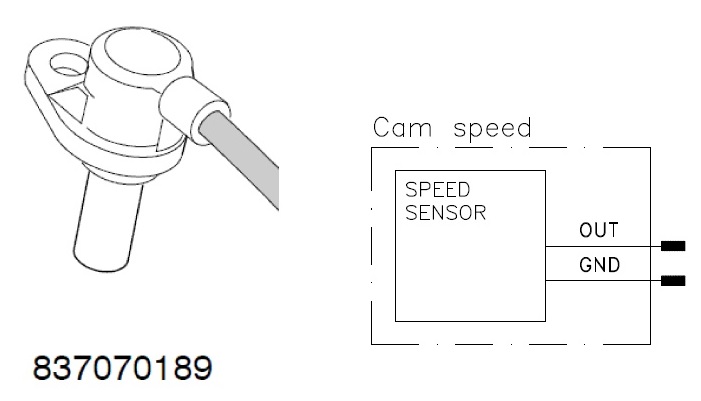

../../_images/CamS_sensor.jpg

ECU connection EDC17CV54, Camshaft speed sensor

Characteristics

Nominal coil resistance at 20 °C: 774 - 946 Ohms

Characteristics, Camshaft speed sensor

Engine sensors overview, see Engine sensors overview
