4.5.2. Start RelayΒΆ

ECU connection

The pin numbers at the ECU:

EDC17CV54       K68 high side
EDC17CV54       K47 Low side

EDC17CV41       1.19 High side
EDC17CV41       1.88 Low side

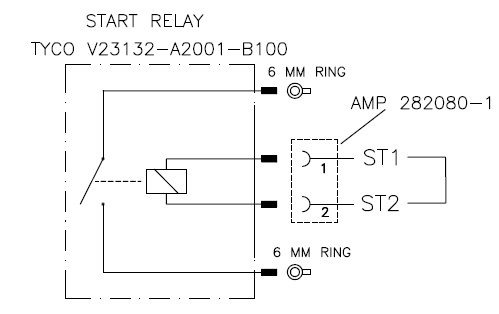

../../_images/StartRelay.jpg

ECU connection, Start relay
