3.7.1. Grid heater solenoid

Description

The grid heater is an electrical intake air heater.

ECU connection

The pin numbers at the ECU:

2.24 high side
2.45 Low side

2.54 Relay output diagnostic

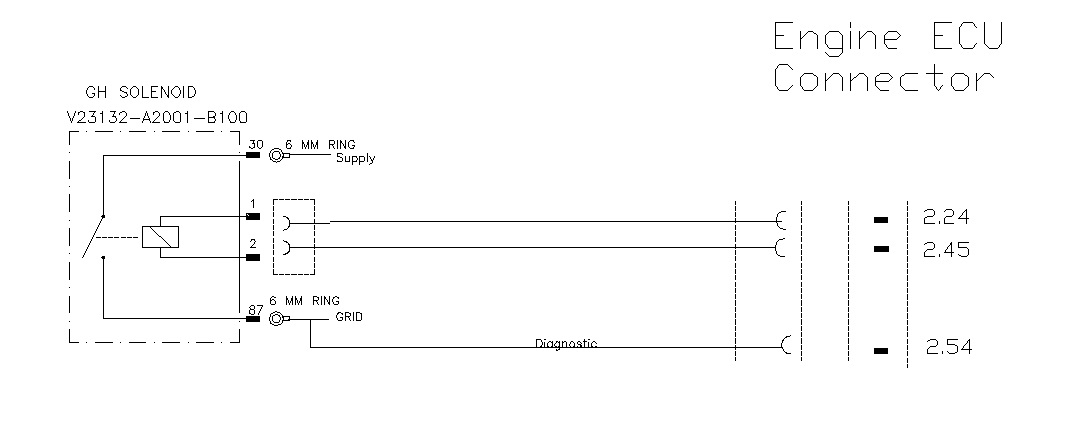

The grid heater connection is shown in figure ECU connection, Grid heater.

ECU connection, Grid heater
