4.3.9. NOx sensorΒΆ

Description

The NOx sensor measures the nitrogen oxides level from the exhaust gas. The NOx sensors have a critical role in the emission control.

The AGCO Power part number: 837073768

ECU connection

The pin numbers at the ECU:

EDC17CV54       K76 CAN vehicle LOW
EDC17CV54       K54 CAN vehicle high

EDC17CV41       1.47 CAN vehicle LOW
EDC17CV41       1.46 CAN vehicle high

NOTE: Sensor is CAN sensor. ID selection is made by ground connection.

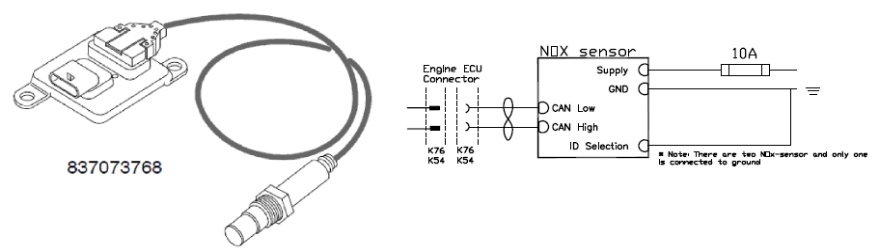

../../_images/NOx_sensor.jpg

Engine sensors overview, see Engine sensors overview
