4.3.16. Engine EGR mixer intake temperature sensor

Description

The engine EGR mixer intake temperature is used to measure the mixed intake manifold temperature. The sensor is only used with the EGR engines. The sensor is located at top of the intake manifold.

The AGCO Power part number: 837074507

ECU connection

The pin numbers at the ECU:

EDC17CV54       A59 Signal
EDC17CV54       A51 Ground

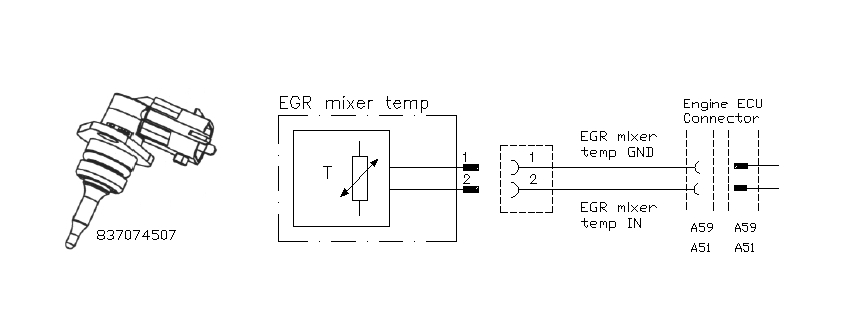

../../_images/EGRmixerT.jpg

ECU connection EDC17CV54, EGR mixer intake temperature sensor

Characteristics

Nominal resistance:

At 25ºC = 2 kohm
At 100ºC = 197 ohm

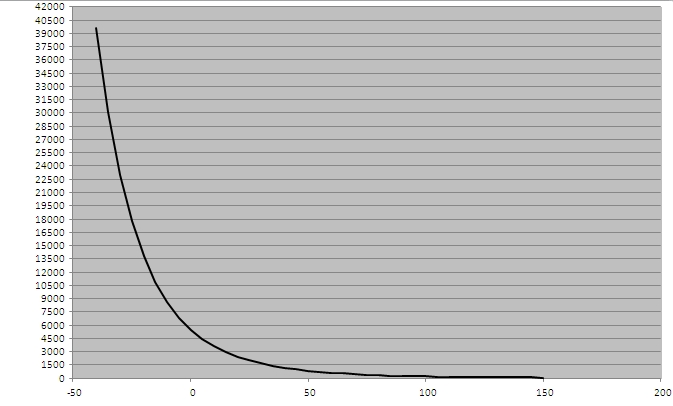

../../_images/EGRmixer_char1.jpg

Characteristics, Engine EGR mixer intake temperature

Engine sensors overview, see Engine sensors overview
