3.3.14. Exhaust gas temperatureΒΆ

Description

There are three sensors in an exhaust line. The first is before the DOC, the second is before the SCR catalyst and the last one is after the catalyst. All the sensors are similar.

ECU connection

The pin numbers at the ECU:

DOC upsteam:

EDC17CV41+      2.38 Analog input
EDC17CV41+      2.42 Ground

Downstream:

EDC17CV41+      1.09 Analog input
EDC17CV41+      1.10 Ground

Upstream:

EDC17CV41+      1.31 Analog input
EDC17CV41+      1.10 Ground

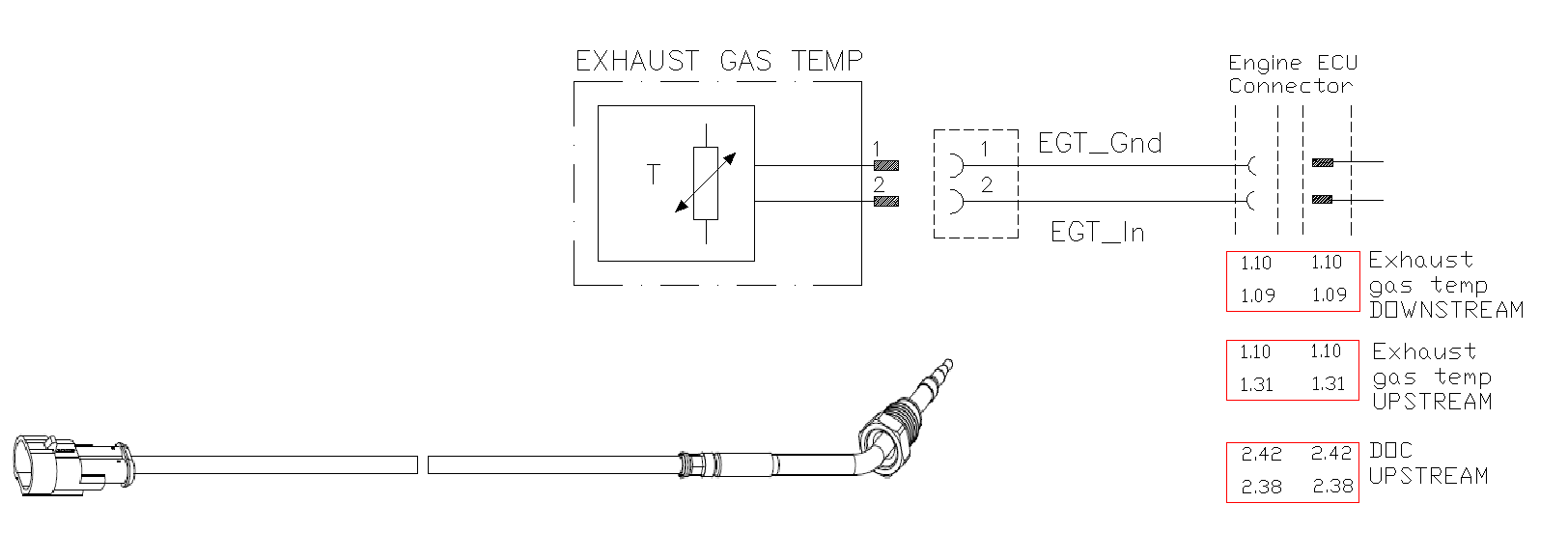

The exhaust gas temperature sensor is shown in figure ECU connection EDC17CV41+, Exhaust gas temperature sensor.

../../_images/EGT.png

ECU connection EDC17CV41+, Exhaust gas temperature sensor

Characteristics

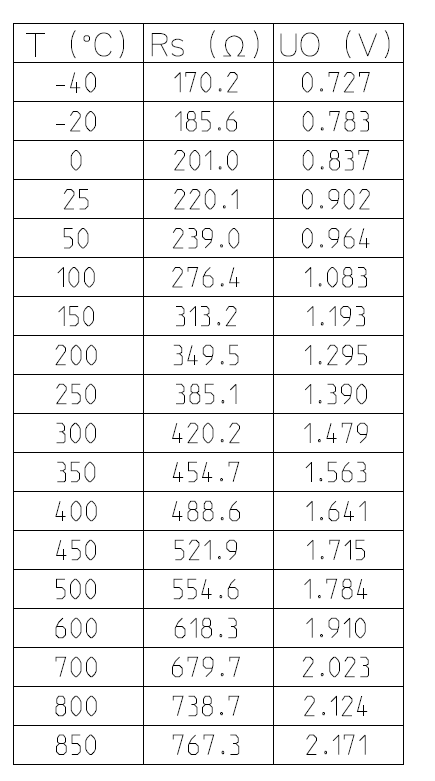

The exhaust gas temperature sensor characteristics are shown in figure Characteristics, Exhaust gas temperature sensor.
../../_images/egt_char1.png

Characteristics, Exhaust gas temperature sensor
