3.3.12. AirmassΒΆ

Description

The Airmass sensor measures the air flow in the pipes and the channels.

ECU connection

The pin numbers at the ECU:

EDC17CV41+      2.10 Supply
EDC17CV41+      2.69 Ground
EDC17CV41+      2.18 CAN Low
EDC17CV41+      2.17 CAN high

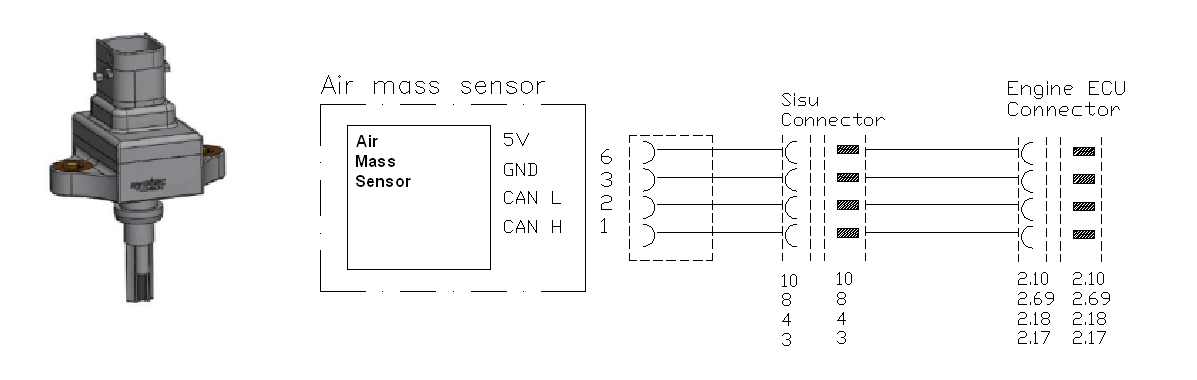

The airmass sensor is shown in figure ECU connection EDC17CV41+, Airmass sensor.

../../_images/Airmass.jpg

ECU connection EDC17CV41+, Airmass sensor

Characteristics

The airmass sensor contains an integrated pressure sensor and a temperature sensor. These signals are processed by an integrated micro controller to calculate the mass flow. The signal is transferred to the electronic control unit (ECU).
