4.4.4. EGR actuator ( Exhaust gas recirculation)¶

Description

An external EGR actuator is used in all the AGCO Power 3 -cylinder engines. The EGR actuator uses the CAN bus to communicate with engine the ECU.

The AGCO Power part number: 837074614

ECU connection

The EGR uses the CAN bus to communicate with the engine ECU. The powerfeed is the vehicle manufacturer’s responsibility.

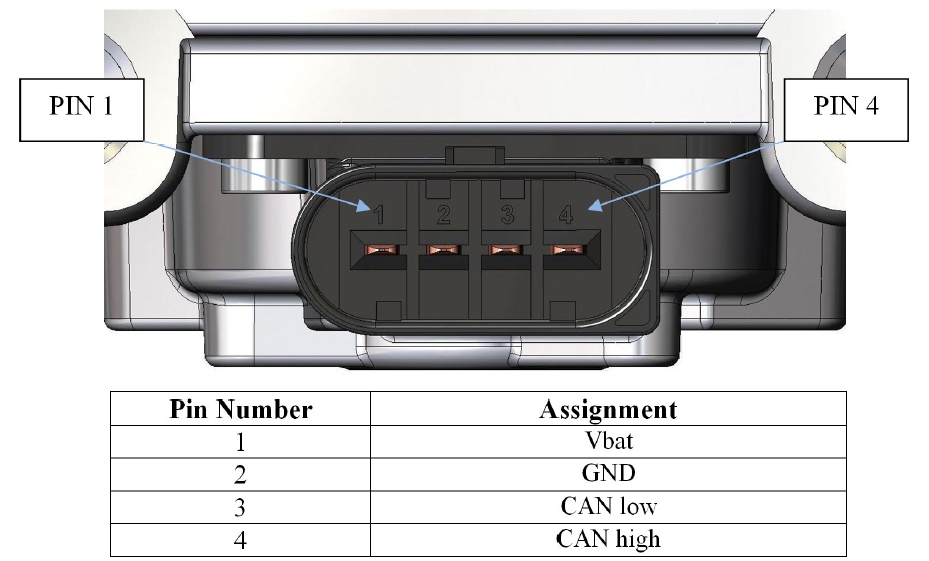

../../_images/EGR2.jpg

EGR actuator
