3.6.6. Pressure Control Valve (PCV)ΒΆ

Description

The pressure control valve controls the rail pressure. The PCV is controlled with the pulse width modulation (PWM) by the ECU.

ECU connection

The pin numbers at the ECU:

EDC17CV41+      2.82 high side
EDC17CV41+      2.81 Low side

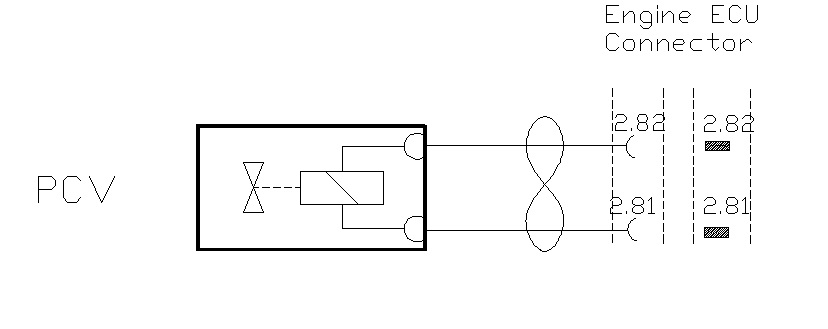

Pressure control valve is shown in figure ECU connection EDC17CV41+, PCV.

../../_images/pcv_v4.jpg

ECU connection EDC17CV41+, PCV
