2.7.1. Intake Air HeaterΒΆ

Description

The grid heater is an electrical intake air heater, The heater is controlled with the solenoid.

ECU connection

The solenoid pin numbers at the ECU:

2.24 high side
2.45 Low side

Intake air heater components:

1 Power wiring
2 Fuse 150A/250A
3 Solenoid
4 Intake air heater

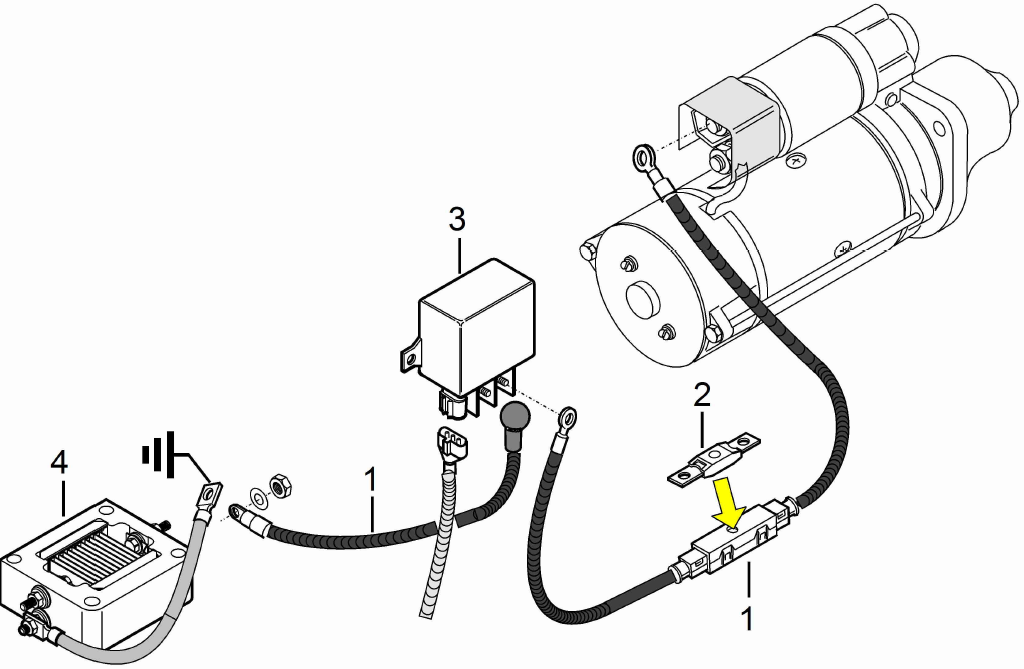

Intake air heater related components are shown in figure Intake Air Heater.

../../_images/Grill.png

Intake Air Heater
