3.5.1. EGR actuator ( Exhaust Gas Recirculation)¶

Description

The actuator is used to drive the EGR rotary valve.

ECU connection

The EGR uses the CAN bus to communicate with the engine ECU. The power feed is the vehicle manufacturer’s responsibility.

The pin numbers at the ECU:

EDC17CV41+      2.18 CAN LOW
EDC17CV41+      2.17 CAN high

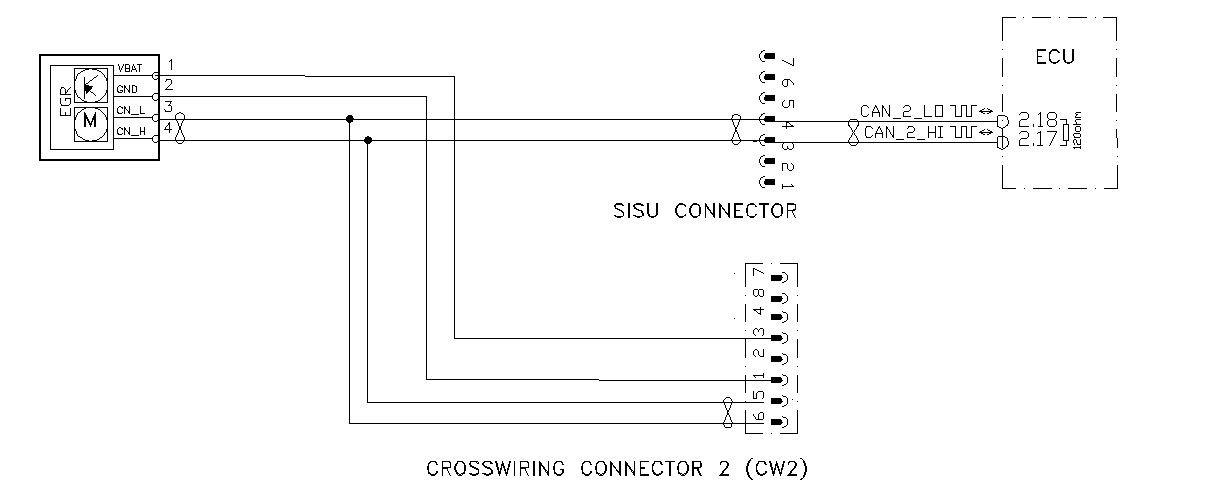

The EGR connection is shown in figure EGR Wiring.

../../_images/EGR_connection3.jpg

EGR Wiring

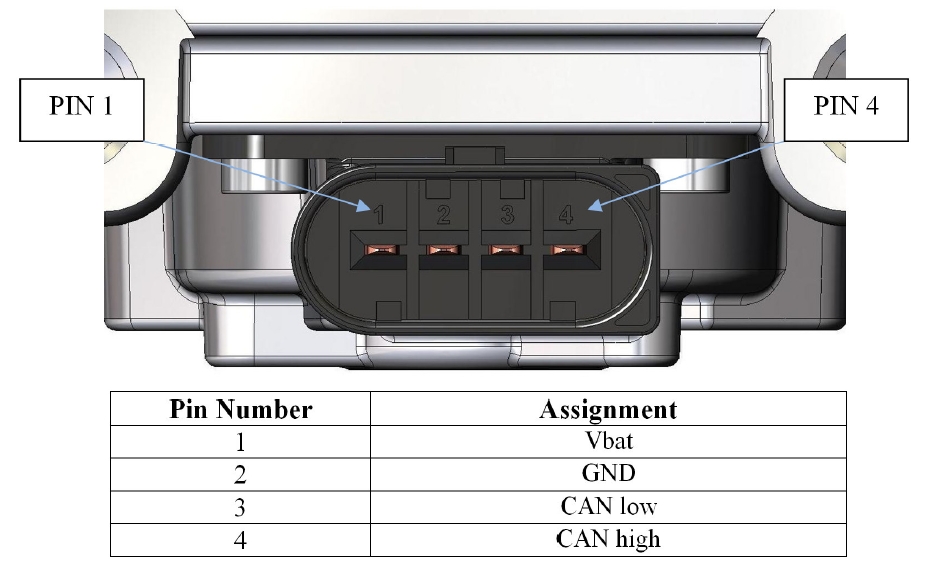

A detailed picture of the EGR connector and the connector pinout is shown in figure The EGR actuator pinout.

../../_images/EGR.jpg

The EGR actuator pinout
